**RP2040-Zero: A Compact and Versatile Microcontroller Board**

RP2040-Zero: The Compact and Versatile Microcontroller for Custom Keyboards
The RP2040-Zero is a popular choice for building custom keyboards due to its small size, affordability, and powerful features. With its dual-core processor, ample memory, and flexible I/O options, it's perfect for creating unique and personalized keyboard layouts.


**Discover the RP2040-Zero: The Ideal Microcontroller for Custom Keyboards**

The RP2040-Zero has quickly become a favorite among keyboard enthusiasts seeking a compact and affordable solution for their custom builds. Its powerful features and versatility make it the perfect choice for creating unique and personalized keyboard layouts.

**Key Features:**

* **Compact and Lightweight:** Ideal for building small-form-factor keyboards.
* **Affordable Price:** Enjoy exceptional value without breaking the bank.
* **Powerful Performance:** Benefit from a dual-core Arm Cortex M0+ processor for smooth
* **Flexible I/O:** Easily connect to a variety of components, including switches, LEDs, and encoders.
* **Customizable Keymaps:** Create tailored layouts and programming using the board's programmable I/O state machines.

**Why Choose the RP2040-Zero for Your Keyboard Project:**

* **Versatility:** Build everything from simple split keyboards to complex ortholinear layouts.
* **Community Support:** Benefit from a thriving community of keyboard enthusiasts offering resources and assistance.
* **Scalability:** Easily expand your keyboard's functionality as your needs grow.

**Unlock Your Keyboard's Full Potential with the RP2040-Zero.**

Whether you're a seasoned keyboard builder or just starting out, the RP2040-Zero is the perfect choice for creating a truly unique and personalized typing experience.


Default Shipping Profile

The go-to cheap controller

RP2040-Zero

Rp2040 zero


Introducing our cutting-edge 1.8-Inch TFT LCD Display Module, a sleek addition to elevate your keyboard experience to new heights. Boasting a vivid 128RGB * 160 Dot Matrix display in full color, this A-TFT screen delivers a high-tech aesthetic that seamlessly integrates with your keyboard setup.

Designed with precision and innovation in mind, this LCD module operates with Serial Peripheral Interface (SPI) input data, ensuring smooth communication and compatibility with a wide range of devices. The display is powered by the advanced ST7735S Driver IC, guaranteeing optimal performance and reliability.

The compact yet impactful dimensions of 35mm (W) * 56mm (H) * 3.45mm (T) make it an ideal choice for keyboards, adding a sophisticated touch without compromising on space. The 128RGB * 160 Dots resolution and LCD Effective Area of 28.03mm (W) * 35.04mm (H) ensure crisp and clear graphics that enhance your keyboard's visual appeal.

What sets this TFT screen apart is its seamless integration with QMK firmware, providing you with enhanced control and customization options for your keyboard. Now, you can personalize your keyboard's display and settings with ease, making it a true reflection of your style and preferences.

Upgrade your typing experience with this 128x160 TFT screen – the perfect fusion of style and functionality. Unleash the potential of your keyboard and embrace the future of tech-infused customization. Elevate your workspace, enhance your productivity, and make a statement with the high-tech brilliance of our 1.8-Inch TFT LCD Display Module.







Color

WoW much color!

128x160 TFT Screen

Blue FR4 Full Color TFT

Elevate your control interface with the FJ08K Joystick, a self-centering 2-Axis Analog Thumbstick. It provides precise directional input. Pair it seamlessly with your Unicorne PCB for enhanced functionality. Sometimes, all it takes to perfect your keyboard is a simple yet effective analog input device. This quality Mini 2-Axis Analog Thumbstick is here to meet those needs.

Key Features:

Self-Centering Analog Control: The FJ08K Joystick is a self-centering analog thumbstick, similar to the PSP joysticks. It features two high-quality 10KΩ potentiometers—one for up/down movement and another for left/right. When released, the thumbstick automatically centers itself, ensuring precise control at all times.

Enhance Your Unicorne PCB:

Pair the FJ08K Joystick seamlessly with your Unicorne PCB to unlock even more possibilities for your split keyboard setup. Experience ergonomic typing, joystick support, and a wealth of customization options with this powerful combination.

Upgrade your control interface today with the FJ08K Joystick and take your keyboard to the next level.


Kinda like a psp joystick if you squint

FJ08K Joystick

Black (Cap) Joystick

White (Cap) Joystick

Introducing the SuperMini Controller - An Affordable NRF52840 Development Board for Ultimate Wireless Control!

Are you searching for a cost-effective board for your next BLE build? Look no further! Meet the SuperMini NRF52840, a game-changing Pro Micro alternative development board that's poised to revolutionize your keyboard and wireless control experience.

[**Please checkout out helper PCB to manage your battery if your keyboard does not do it for you.**](https://www.boardsource.xyz/products/Battery-Helper)

**Full ProMicro Compatibility**: The SuperMini boasts the same pin configuration as ProMicro, ensuring seamless compatibility with most ProMicro keyboards. Say goodbye to compatibility issues and hello to easy integration.

**Power-Efficient Design**: The SuperMini is designed with power efficiency in mind. It features a 3.7V lithium battery interface and a software switch to cut off LED power, drastically reducing standby power consumption to as low as 1mA. Enjoy extended battery life without sacrificing performance.

**High-Performance Chip**: At its core, the SuperMini houses the nRF52840 chip, a high-performance, low-power SoC developed by Nordic Semiconductor. This powerhouse supports multiple wireless protocols, including Bluetooth 5, Thread, Zigbee, ANT, and 2.4GHz. With an ARM Cortex-M4F processor clocked at 64MHz, 1MB flash memory, and 256KB of RAM, you can count on this board for seamless and responsive wireless control.

**Abundant Peripherals**: The SuperMini doesn't skimp on features. It comes equipped with a wide range of peripherals, including ADC, PWM, SPI, I2C, UART, USB, and GPIO, providing you with flexibility and versatility for your projects. Plus, it incorporates top-notch security features like AES encryption, SHA-256 hashing, and True Random Number Generator (TRNG) for peace of mind.

Unleash the power of wireless control with the SuperMini NRF52840 development board. With an attractive price point and superb performance, it's the ideal choice for anyone looking to upgrade their ProMicro experience without breaking the bank.

Ready to elevate your projects and leave expensive alternatives behind? Explore the SuperMini NRF52840 today. Grab yours now and enjoy a world of possibilities at your fingertips!

Affordable BLE

Supermini nRF52840

Supermini

The PCM12 is the go-to choice for Bluetooth keyboard power control, trusted by manufacturers and users alike.

**Space-Saving Design:** Its compact form factor allows for seamless integration into the sleek design of Bluetooth keyboards, without adding bulk or complexity.

Upgrade your Bluetooth keyboard's power control with the PCM12 Slide Switch – the preferred choice for reliability and user-friendly operation.

A slim switch

SMD Slide Switch

PCM12 Slide switch

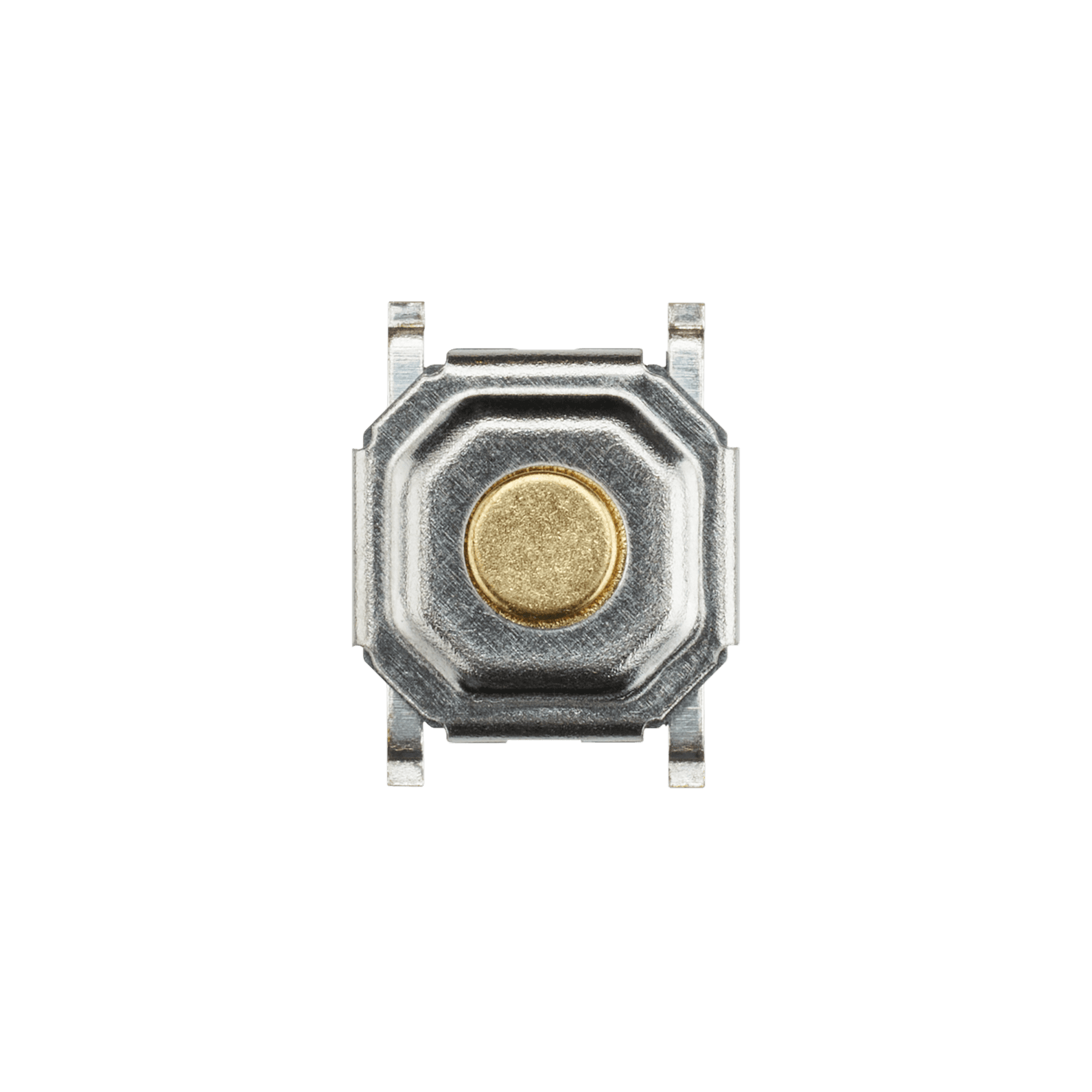

Introducing our Reset Tack Switches, available in two reliable options: PTS526 and TS09-63-25-WT-260-SMT-TR.  These are the two sizes sold with our products.


* **PTS526** ( 5.20mm x 5.20mm x 1.5mm)
* **TS09-63-25-WT-260-SMT-TR** (	6.10mm x 3.70mmx2.5mm)

Choose confidence and reliability with our Reset Tack Switches. High-quality switches today!

**Note:**

Any pcbs sold at Boardsource have the correct one included. You only need to order these if you want them for your own project or to replace one.

Sold in packs of 2.

Size

You got to push something....

Reset Switches

PTS526 Brass square

TS09-63-25-WT-260-SMT-TR White

**Unlock Your Keyboard Creations with Seeed Studio XIAO RP2040**

The Seeed Studio XIAO RP2040 isn't just a microcontroller; it's the key to crafting the ultimate custom DIY keyboard experience. Engineered to perfection with the power and versatility needed for your dream keyboard projects, the XIAO RP2040 is your gateway to limitless customization.


**Why XIAO RP2040 for DIY Keyboards?**

- **Powerful Dual-Core Performance:** Featuring a Dual-core ARM Cortex M0+ processor clocked at up to 133 MHz, the XIAO RP2040 ensures your keyboard remains responsive and reliable even during the most demanding typing sessions.

- **Ample Resources:** With 264KB of SRAM and 2MB of on-board Flash memory, you have all the space you need to store your custom keymaps and macros, unleashing your keyboard's full potential.

- **Flexibility in Compatibility:** Whether you prefer Micropython, Arduino, or CircuitPython, the XIAO RP2040 supports your chosen platform, making it easy to implement your keyboard's unique features.

- **Sleek and Compact:** Designed as small as a thumb (20x17.5mm), the XIAO RP2040 is perfect for wearable devices and compact keyboard designs, allowing you to create stylish, portable keyboards.

**Tailor Your Dream Keyboard**

The XIAO RP2040 offers a wide array of interfaces, including 11 digital pins, 4 analog pins, 11 PWM Pins, 1 I2C interface, 1 UART interface, 1 SPI interface, and 1 SWD Bonding pad interface. This level of flexibility empowers you to design your keyboard exactly as you envision it, down to the smallest detail.

**Easy Integration with Seeed Studio XIAO Expansion Board**

For added convenience, the XIAO RP2040 seamlessly integrates with the Seeed Studio XIAO expansion board, expanding your keyboard project possibilities even further.


**Getting Started and Beyond**

The XIAO RP2040 is more than just a microcontroller; it's a community. Join a thriving network of keyboard enthusiasts who share your passion for customization, and tap into a wealth of resources, tutorials, and discussions to accelerate your DIY keyboard journey.

**Grab Your XIAO RP2040 Today**

Ready to embark on your custom DIY keyboard adventure? Get your Seeed Studio XIAO RP2040 now and experience the power of limitless keyboard customization.

**Elevate your typing experience, unlock your creativity, and create the keyboard of your dreams with Seeed Studio XIAO RP2040. Start typing your custom story today!**


A tiny RP2040 Controller

Seeed Studio XIAO RP2040

Rp2040 Controller

Introducing the Ultimate Raspberry Pi Pico Controller for DIY Keyboards – Now with USB Type-C and Sleek Black FR4!

Elevate your custom DIY keyboard game with the Raspberry Pi Pico Controller, now engineered to perfection with USB Type-C connectivity and a sophisticated Black FR4. This ingenious microcontroller isn't just pin-compatible with the original – it's tailor-made for your keyboard projects, unlocking endless customization possibilities.

**Key Features:**

**1. USB Type-C Bliss:** Say farewell to the hassles of older connectors. With USB Type-C, you'll enjoy lightning-fast data transfer and hassle-free power delivery, ensuring your DIY keyboard stays responsive and reliable.

**2. Style Meets Durability:** Encased in a sleek Black FR4, this Pico Controller isn't just a powerhouse; it's a fashion statement. Elevate the aesthetics of your custom keyboard while ensuring it stands up to everyday wear and tear.

**3. Seamless Compatibility:** Worried about making the switch from the original Raspberry Pi Pico? Worry no more. Our Pico Controller maintains full pin compatibility, effortlessly integrating into your existing setups.

**4. Limitless Customization:** The Raspberry Pi Pico Controller with USB Type-C and Black FR4 puts the power of customization in your hands. Explore unique key layouts, lighting effects, and macros with its versatile GPIO pins and Python programming support.

**5. DIY Community Support:** Join a thriving community of DIY keyboard enthusiasts who share your passion. Access a treasure trove of tutorials, keymaps, and modding tips to take your creations to the next level.

Elevate your DIY keyboard projects with the Raspberry Pi Pico Controller, now boasting USB Type-C connectivity and a sleek Black FR4 enclosure. Unlock your creativity, redefine your typing experience, and craft the ultimate custom keyboard with this pin-compatible microcontroller. Dive into the world of custom keyboards today!

A big controller for a * Big * boi

Pico

Rp2040 Pico Controller

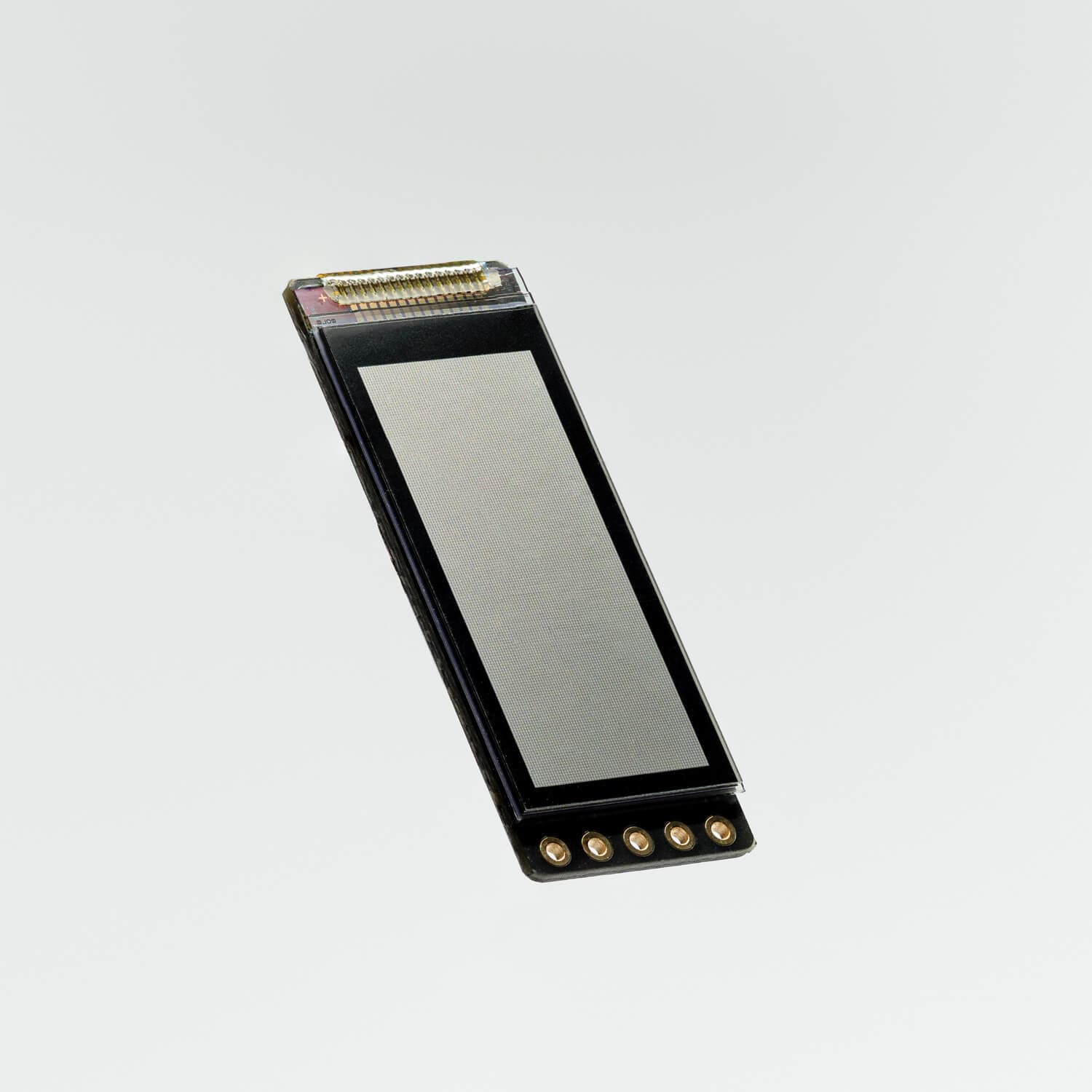

Want to use a display on your keyboard, but don't like the significant battery draw that usually comes with it? There's a solution now: using the nice!view by Nice Technologies, you can make use of a highly efficient Memory-in-Pixel (commonly referred to as E-Ink) display by Sharp in a convenient form-factor.

It boasts a 30Hz refresh rate while drawing comparable power to an E-Ink display. And with a resolution of 160 x 68 pixels in a 1.08" display, there's plenty of space to go around!

You can use the display for anything, from displaying the battery, connection, layer and lock statuses, to displaying graphs and animations.

NOTE: This display is not a plug and play drop-in replacement for OLED displays. You can make it work with OLED footprints by [following this guide](https://docs.beekeeb.com/other-guides/adding-nice-view-to-a-keyboard-with-a-4-pin-oled-compatible-shield-with-a-hidden-wire), more and more PCBs will be coming out with the nice!view specific footprpint soon. Due to this, nice!view is not available for Soldering Service.

eink screen for keyboards

nice!view

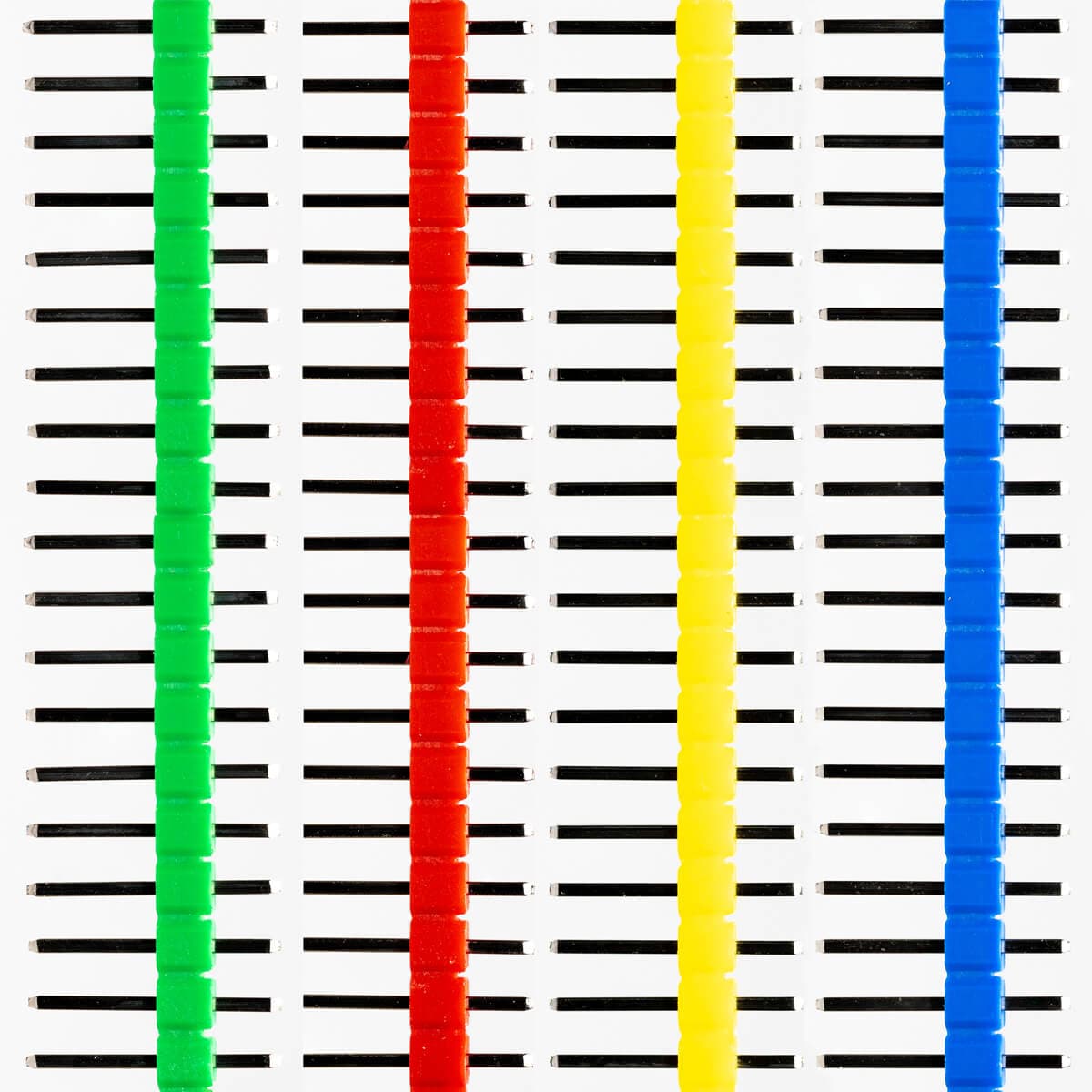

These are a more colorful version of the basic headder pins that come with every controller. If your looking to spice up your build check out one of these to spice up your keyboard in very subtle way

Sold in strips of 40 which is enough for one controller.

Header Pins

Header Pins Green

Header Pins Red

Header Pins Yellow

Header Pins White

Header Pins Blue

SK6812 Mini-e RGB LEDs are a newcomer for mechanical keyboards. But each led is still individually addressable, meaning it can be instructed to be a different color than a neighboring LED But now far more user friendly. Watch out though, LEDs are not universal on keyboards, you need to make sure you are using the right LED for your particular keyboard. Check the model number your keyboard takes and make sure it matches this one.

** These LED'S are not the same as SK6812 Mini the pin out is different **

**This is a kit of the leds needed for  a corne keyboard Or Microdox**

LED Pack

V3 Corne LED Pack

Mill-Max sockets are the premier choice for socketing your micro controller. Socketing your micro controller allows you to change your controller or move it around to different boards with easily, without desoldering anything.

Mill-Max sockets are also the lowest profile option available for controller sockets.

**Which pins do you need?** That is a great question and is easy to answer!

If you’re socketing a Blok, Elite-C, Pro Micro, or any other USB C controller that doesn’t need to have a battery underneath it you should select the ’Short Mill-Max Pins’ from the Pin dropdown. These are 6.35mm pins and allow you to get the lowest profile socketed setup available.

If you’re socketing a nice!nano for a wireless build and require a battery to be underneath the controller, you must select the ‘Long Pin Strip’ from the Pins dropdown. These ship in a strip of 40 and must be cut by the user (this is very simple to do). These are a bit longer and allow you to fit a battery underneath your controller.

**What comes in each pack?**

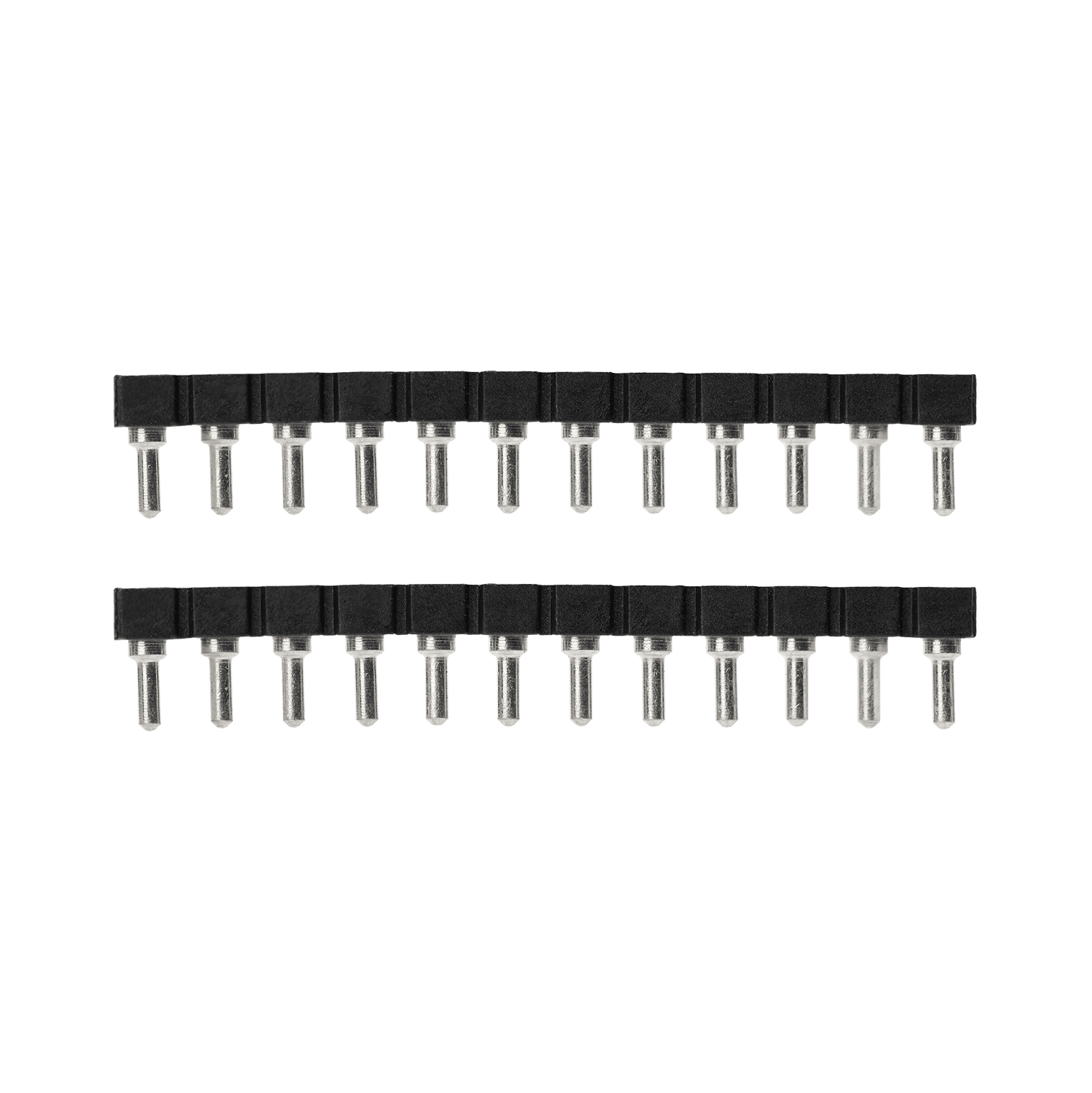

**Mill-Max Sockets:** (2) strips of 12, so QTY 1 in your cart covers a single microncontroller. Splits will require QTY 2 in your cart.

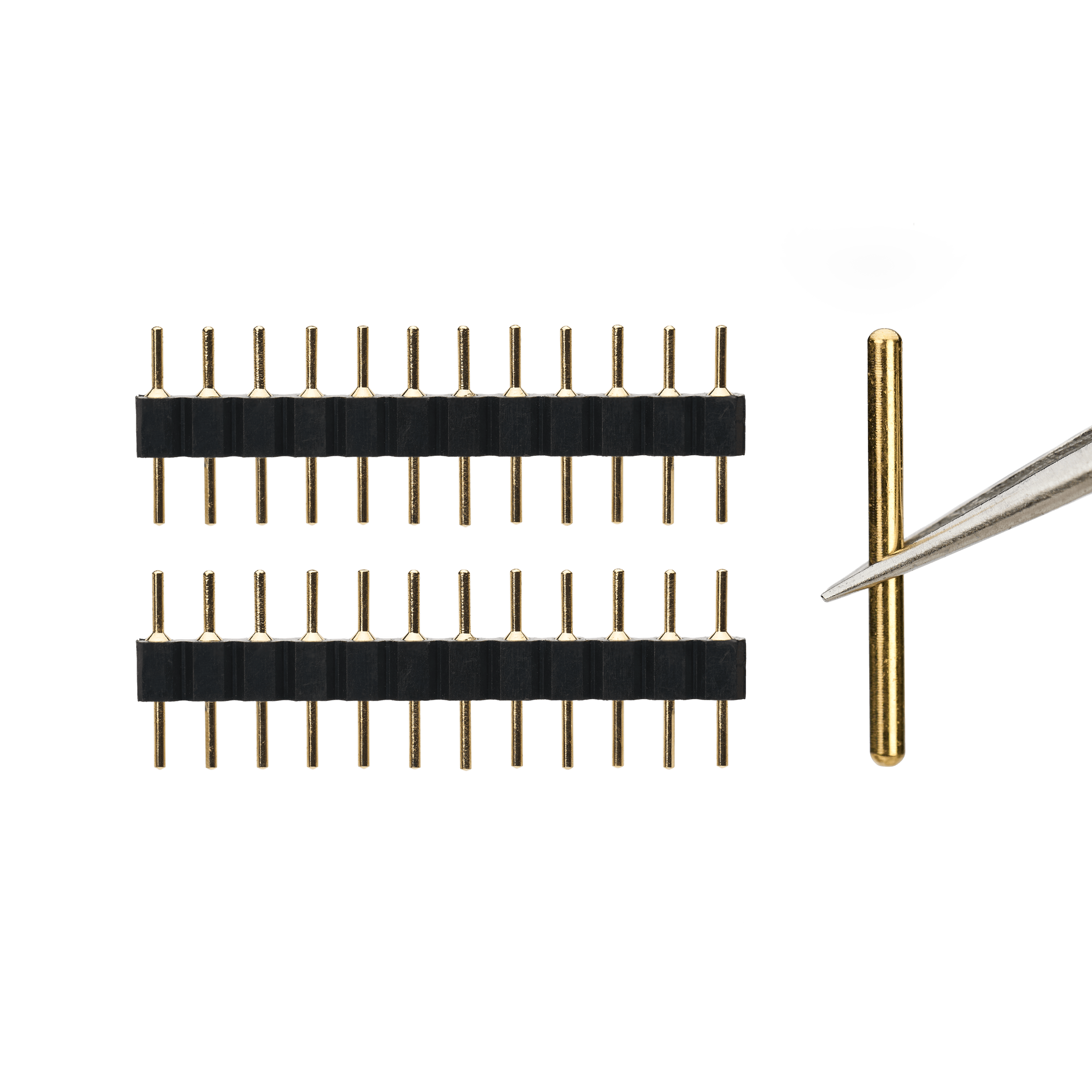

**Short Mill-Max Pins:** A baggy of 30 pins, QTY 1 in your cart covers a single microcontroller. Splits will require QTY 2 in your cart.

**Long Pin Strip:** Sold in single ’strips’, QTY 1 in your cart is (1) strip of 40 and must be cut by the user. Splits will require QTY 2 in your cart.


**Relevant Part Numbers:**

Mill-Max Sockets: 315-43-112-41-003000

6.35mm Mill-Max Pins: 3320-0-00-15-00-00-03-0


The Go-To Socket Solution for MCUs

Mill-Max Socket Sets

Mil Max Short Pin Sockets Set

Socket pins are a necessary component when trying to socket your micro controller. Socketing your micro controller allows you to easily remove the controller from your board or move it around without the need to desolder anything.

One DIY approach is to use diode legs as socket pins, but trust us when we say these work a LOT better!

**Which pins do you need?** That is a great question and is easy to answer!

If you’re socketing a Blok, Elite-C, Pro Micro, or any other USB C controller that doesn’t need to have a battery underneath it you should select the ’Short Mill-Max Pins’ from the Pin dropdown. These are 6.35mm pins and allow you to get the lowest profile socketed setup available.

If you’re socketing a nice!nano for a wireless build and require a battery to be underneath the controller, you must select the ‘Long Pin Strip’ from the Pins dropdown. These ship in a strip of 40 and must be cut by the user (this is very simple to do). These are a bit longer and allow you to fit a battery underneath your controller.

**What comes in each pack?**

**Mill-Max Sockets:** (2) strips of 12, so QTY 1 in your cart covers a single microncontroller. Splits will require QTY 2 in your cart.

**Short Mill-Max Pins:** A baggy of 30 pins, QTY 1 in your cart covers a single microcontroller. Splits will require QTY 2 in your cart.

**Long Pin Strip:** Sold in single ’strips’, QTY 1 in your cart is (1) strip of 40 and must be cut by the user. Splits will require QTY 2 in your cart.


**Relevant Part Numbers:**

Mill-Max Sockets: 315-43-112-41-003000

6.35mm Mill-Max Pins: 3320-0-00-15-00-00-03-0

Style

The best diode legs!

Socket Pins

Short Mil Max Pins

Long Pin Strip (n!n)

3.7V 110mAh 301230 Lithium Polymer Li-Po Cell

110mAh 301230r

301230r

## V2 Changes
- Reduced quiescent (system idle) power by ~70%
 - Increased through-hole pad sizes to make soldering easier
 - Reduced battery pin size to avoid incorrect installation
 - Charge boost added to optionally increase charge rate from ~100mA to ~500mA
 - Miscellaneous changes to reduce GPIO failures, improve thermals, and reduce component failures

[**Please checkout out helper PCB to manage your battery if your keyboard does not do it for you.**](https://www.boardsource.xyz/products/Battery-Helper)

**PLEASE READ ENTIRE DESCRIPTION**

The nice!nano is a wireless, BLE (Bluetooth) enabled replacement for the Pro Micro or Elite-C powered by the nRF52840 SoC. The nice!nano utilizes a LiPo battery allowing you to make your board completely wireless and has an on-board charging circuit, so simply plug in your keyboard to charge the battery, and use it wireless any other time you want.

**Note:** Includes square post headers for assembly. It is recommended to socket using Mill Max Low Profile Sockets.

**Note:** Due to the nature of this product, it cannot be included in assembly orders.

**Note:** Please remember, you will need to find space on your keyboard to put the battery. The stock header pins allow the battery to rest underneath the controller, but do remember that it is recommended these be socketed, so check your clearances depending on the socket you use (if you elect to use a socket).

**DISCLAIMER:**

For advanced users only! Know what you are getting into please -- this is NOT a drop-in replacement and is not 'plug and play.' You will likely have to do extensive setup and have programming knowledge in order to use this product and make your board Bluetooth. Boardsource does not guarantee a smooth implementation and we are not necessarily able to extensively help you get the nice!nano v1.0 working on your build. The nice!nano documentation [can be found here](https://docs.nicekeyboards.com/#/nice!nano/).

Compared to existing wired solutions like the Pro Micro or Elite-C, the nice!nano v2.0 is still in development, and along with that comes a certain amount of hands-on setup, troubleshooting, and general knowledge that is required in order to successfully install. As a result, this product is not recommended for beginners and other microcontrollers should be chosen instead.

Due to running on 3.3v compared to the 5v that the Pro Micro and Elite-C supply, it is not recommended to install RGB LEDs or OLEDs as these account for considerable power-draw.

nice!nano v2.0

SK6812 Mini-e RGB LEDs are a newcomer for mechanical keyboards. But each led is still individually addressable, meaning it can be instructed to be a different color than a neighboring LED But now far more user friendly. Watch out though, LEDs are not universal on keyboards, you need to make sure you are using the right LED for your particular keyboard. Check the model number your keyboard takes and make sure it matches this one.

** These LED'S are not the same as SK6812 Mini the pin out is different **

LED (SK6812 Mini-e)

SK6812 Mini RGB LEDs are a common LED for mechanical keyboards. Each LED is individually addressable, meaning it can be instructed to be a different color than a neighboring LED. Watch out though, LEDs are not universal on keyboards, you need to make sure you are using the right LED for your particular keyboard. Check the model number your keyboard takes and make sure it matches this one.

LED (SK6812 Mini)

The Elite-C is an Pro Micro drop-in Microcontroller developed to offer a better alternative to the Pro Micro while still being fully backwards-compatible. It sports the very same AVR ATmega32u4 8-bit microcontroller which has an integrated USB controller and pin-out while adding 6 more pins. Like the name states, the Elite-C features a more modern USB-C port which is also more durable and less prone to tear-out. Since almost all keyboards utilize the Pro Micro's footprint, this drop-in upgrade is a great way to take any board you build to the next level.

The newest iteration, the Elite-C v4, features a 'low-pro' design and is the new standard for the Elite-C. Not only is the v4 shorter in height that the previous version, it is more durable. The center-mount USB C connector is considerably more sturdy and also decreases the total height of the Microcontroller. Another new addition is the inclusion of a VBUS pin that is broken out and placed directly above pin B0 on the PCB.

* b-stock atm
the fr4 on this batch is 2mm instead of 1.6mm no real change to usability.

Elite-C (v4)

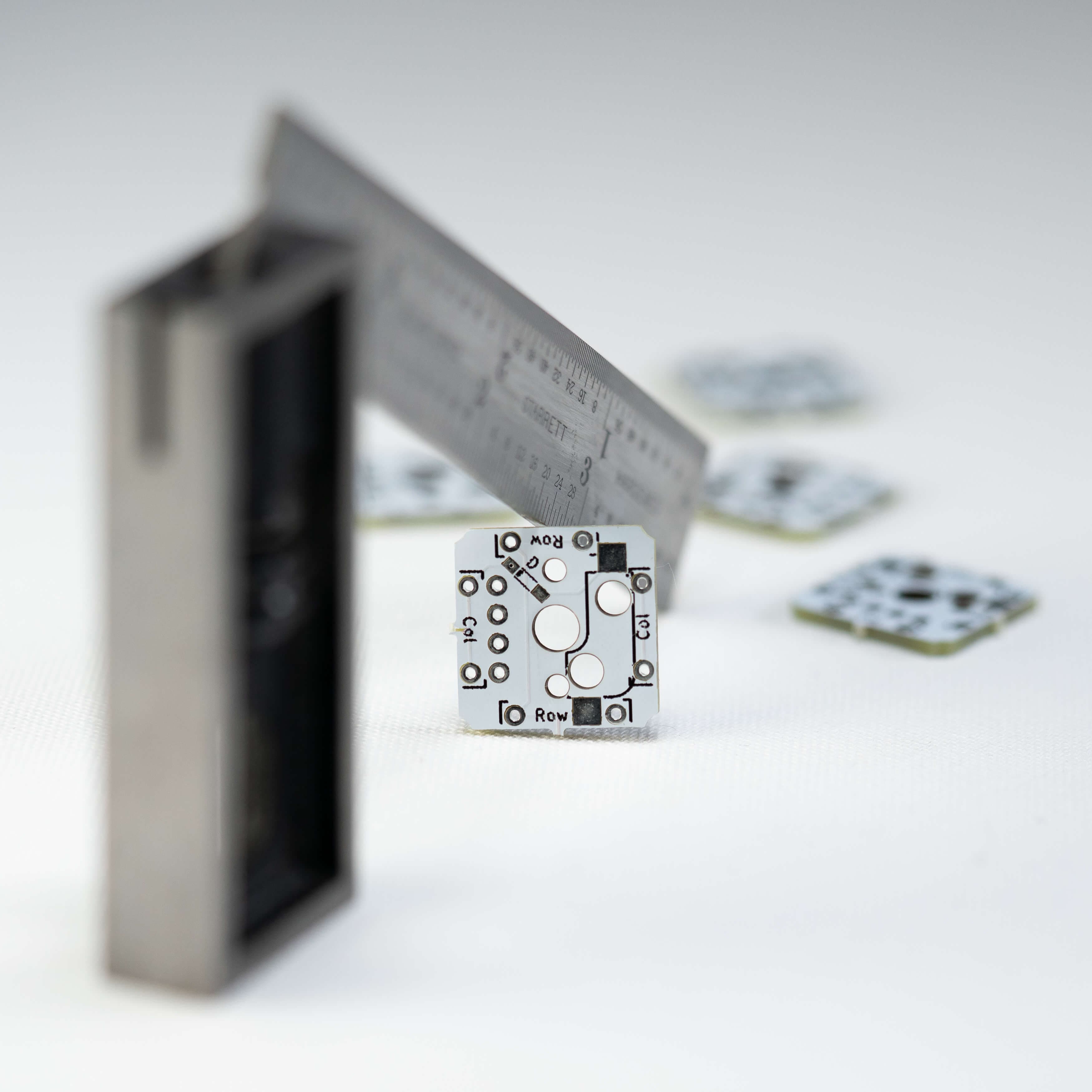

PCBabies offer a great way to connect a hand wired keyboard build. These PCBabies are MX Hot Swap compatible, allowing you to easily swap out your switches even in a hand wire build. You are purchasing a small sheet which consists of 25 PCBabies that can be broken apart to service individual switches.

PCBabies

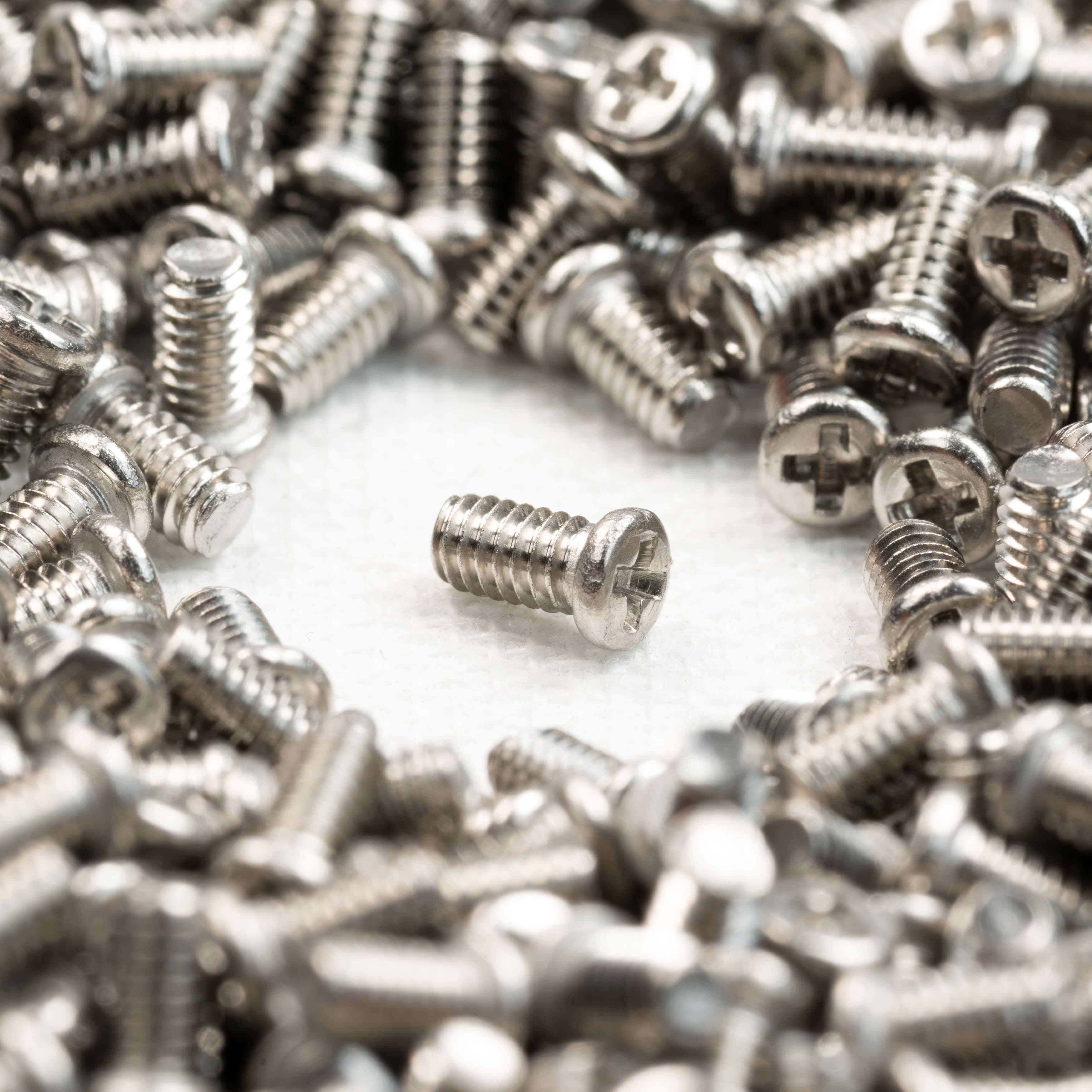

Silver M2x5mm Phillips head screw. These are standard size for most keyboards that are using standoffs.

M2x5mm Screw

M2x5mm Screw Silver

M2x5mm Screw Black

WS2812B RGB LEDS are very common individually addressable LEDs meaning that each one can be told to be a certain color. For our uses with keyboards commonly we use them for underglow and sideglow/side-lighting decorative lighting.

LED (WS2812B)

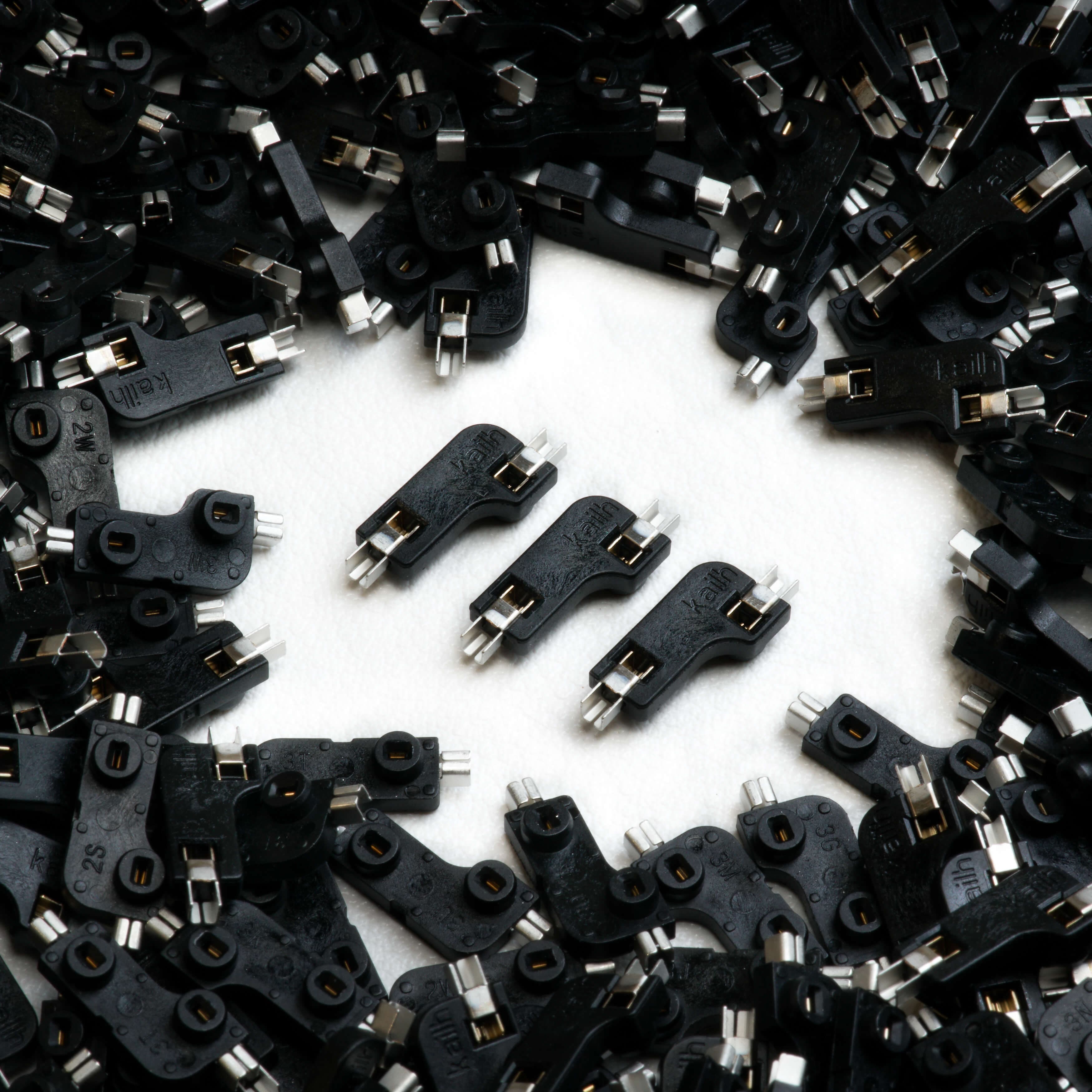

MX Compatible hot swap sockets are a great addition to any keyboard that accepts them.  Kailh MX Hot Swap sockets allow you to change the switches on your board at any time, without needing to de-solder the switch.

MX Hot Swap Sockets

Black MX Hot Swap Sockets

White MX Hot Swap Sockets

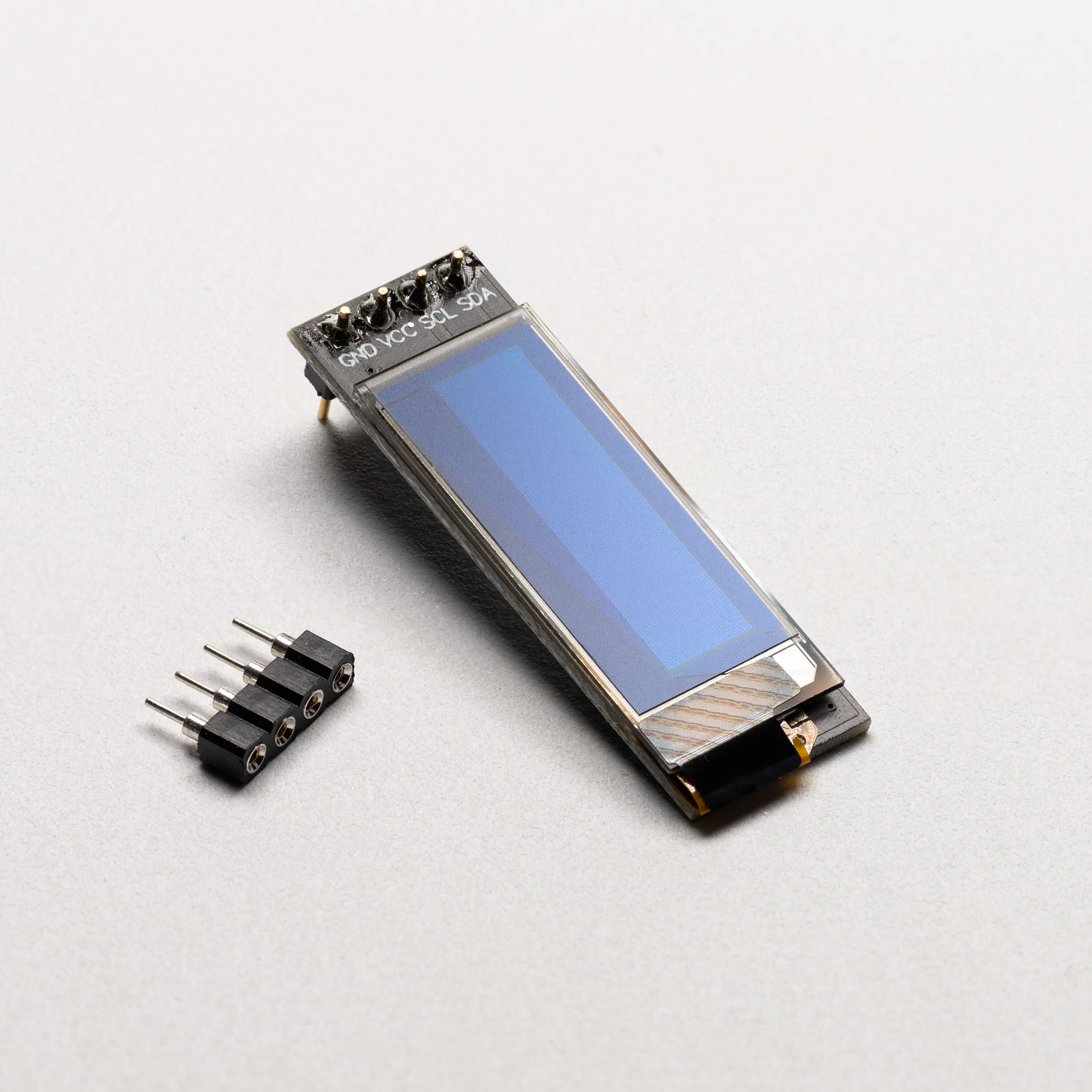

OLED screens communicate with your microcontroller over I²C to display helpful or otherwise cool/interesting information. For keyboards that are compatible with the OLED displays, they are an awesome option to customize your keyboard and offer a unique high-tech look. By default, the screen will show the layer that is currently active, but you're able to customize the screen to display basically anything you want.

These are our new custom OLEDs! They are matte black in color and each have the male socket header pins pre-soldered onto them. Included in every antistation alongside each OLED purchased there are the female socket pins included. Each OLED purchased gives you the necessary items required to solder the OLED with no additional socket purchases. If for some reason you do not want to use the OLED socketed, it is no problem simply solder it onto the board as usual.


OLED Screen-S

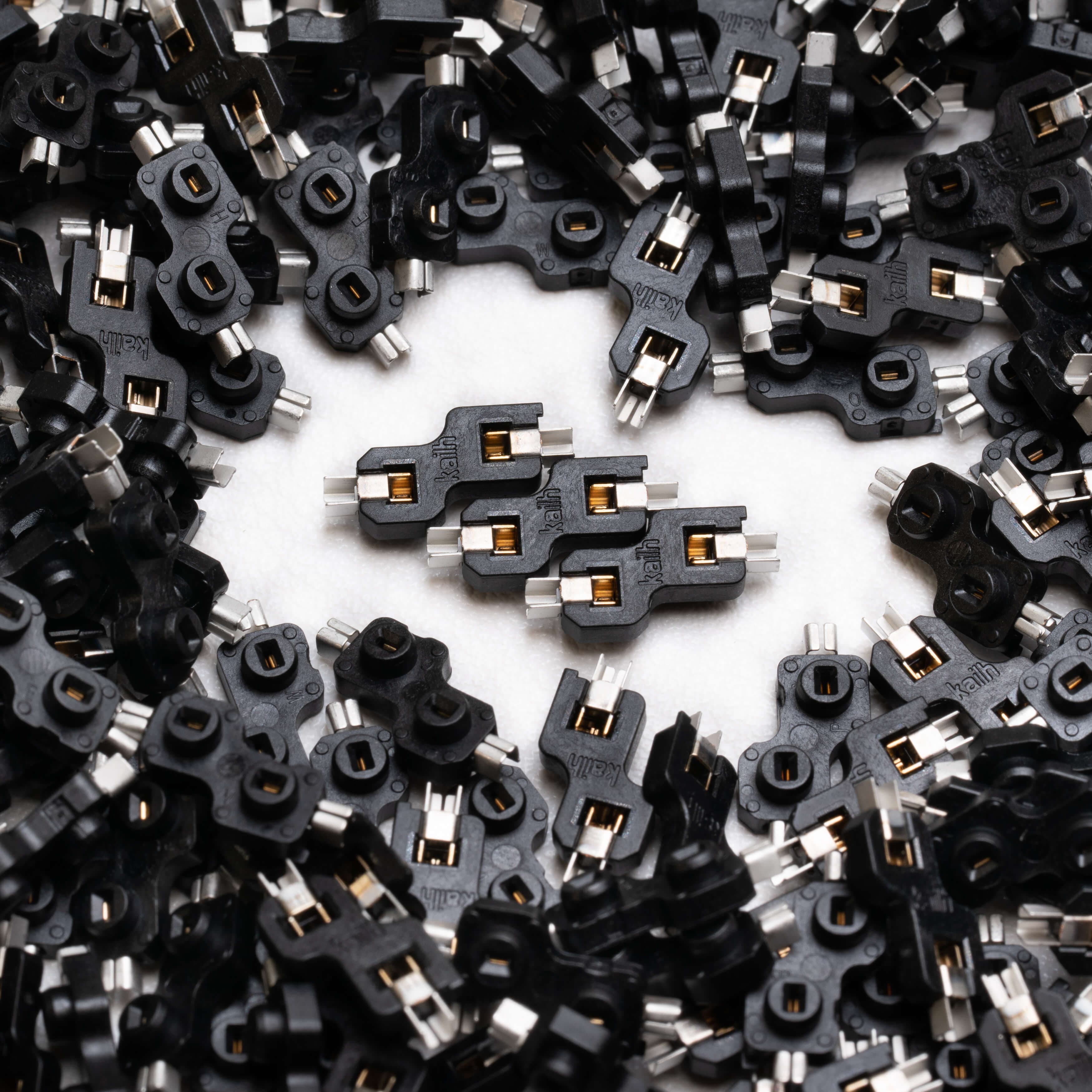

Choc Low Profile Switch compatible hot swap sockets are a great addition to any keyboard that accepts them. Choc hot swap sockets allow you to change the switches on your board at any time, without needing to de-solder the switch.

Choc Hot Swap Sockets

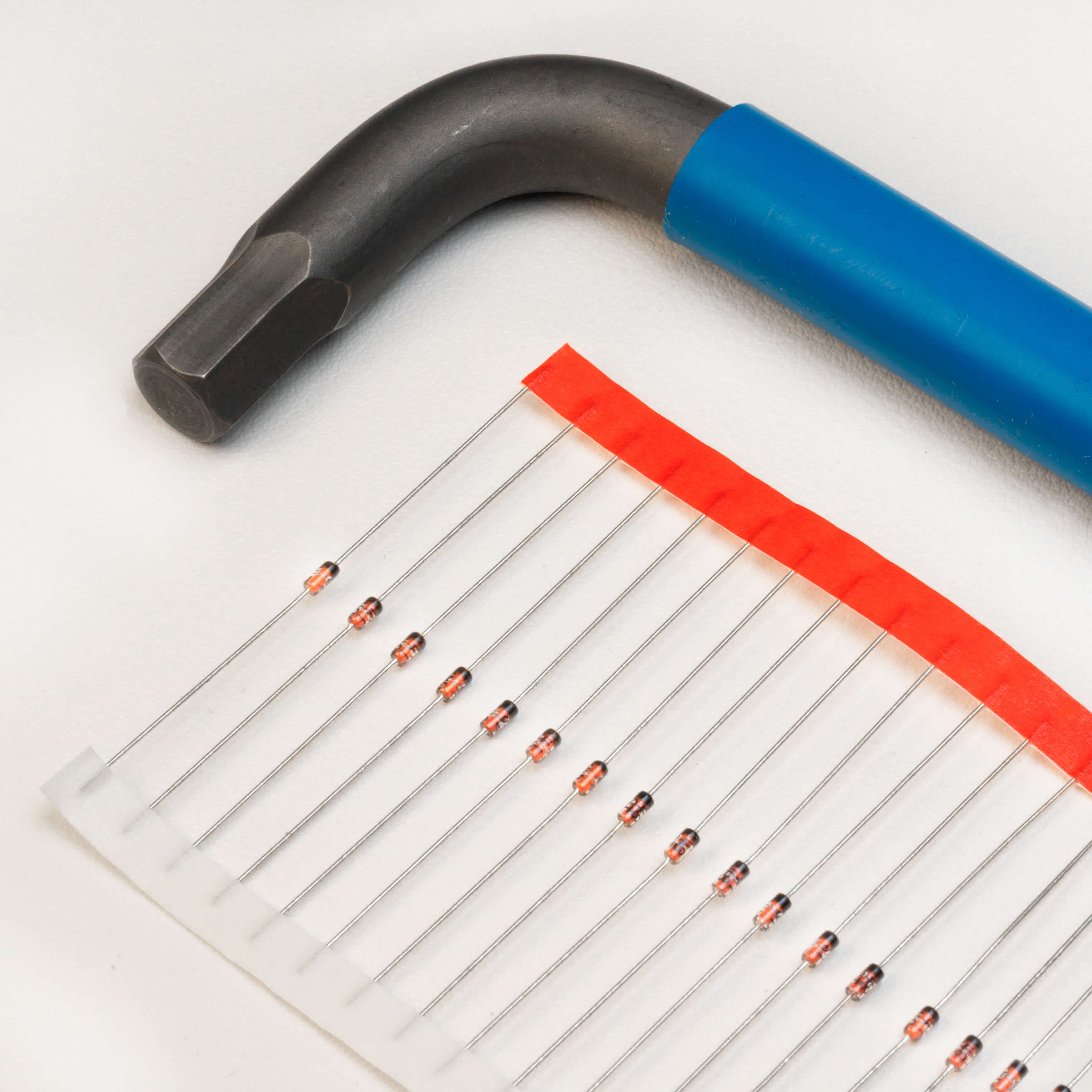

Standard switching diode for use in electronic projects. Compatible with all PCBs that are expecting through hole diodes.


Diode (TH)

Standard through hole TRRS connector for keyboards. While maintaining compatibility with standard 3.5mm headphone connectors, these add a 4th connector allowing you to transfer more data. Generally, they are used on split keyboards to communicate between the two halves.

TRRS Connectors are sold in packs of 2.

Color/Package

Standard split connector for keyboards

TRRS connector

TH / Back

SMD / Back

TH / Pink

TH / Green

TH / Yellow

Soldering Service for Kit Custom Keyboard PCBs: Hassle-Free Assembly for Your Dream Keyboard

Are you ready to build your dream custom keyboard but prefer to leave the soldering to the experts? Look no further! Our professional soldering service for kit custom keyboard PCBs is here to make your life easier. We take care of the intricate soldering work, ensuring precise and reliable connections so that you can enjoy a seamless typing experience.

**Professional Soldering**: Our experienced technicians will skillfully solder the components onto your kit custom keyboard PCB, saving you the time and effort of doing it yourself. Rest assured, we follow industry-standard practices to ensure excellent soldering quality.

**Hassle-Free Assembly**: With our soldering service, you can skip the complexities of soldering and focus on the fun part—building your keyboard. We take care of the soldering, so you can enjoy a stress-free assembly process.

**Additional Assembly Steps**: Please be aware that our soldering service covers the soldering of components onto the PCB only. It does not include screwing together the case or installing switches. However, fret not! Assembling the keyboard after receiving our soldering service is a breeze, requiring only a screwdriver.

**Quality Assurance**: We understand the importance of a well-built keyboard, which is why we prioritize quality in every aspect of our soldering service. From precise soldering connections to thorough testing, we strive for excellence to deliver a reliable and high-performing keyboard PCB.


Experience the joy of a fully assembled custom keyboard without the hassle. Let our soldering service take care of the intricate work, giving you a professionally soldered PCB ready for assembly. With our service, you can focus on the exciting part—personalizing your keyboard to perfection. Embrace the satisfaction of typing on a keyboard that's truly yours.

Please note that our soldering service is specifically for kit custom keyboard PCBs. Take the first step towards your dream keyboard by choosing our soldering service today.


## **Note**:
* **LED Compatibility**: Only on advanced Soldering Service will your leds be soldered.

* **Controllers**: Please note that our soldering service covers the soldering and flashing of controllers (RP2040 & Elite-c), but this will be done using the default header pins not sockets. On default soldering service.
* **Advanced Service**: With Advanced service we will solder LED's, Nice!Nano's & batteries And  Controller Sockets. This is the service level you will need if you want socketed N!N with nice views installed. With advanced service we will install power switches every time. **If no
Batteries are bought they will not be installed**

Level

Soldering Service

Basic soldering service

Advanced soldering service

Standard switching diode for use in electronic projects. Compatible with all PCBs that are expecting SMD diodes.

Type

Clasic Diodes

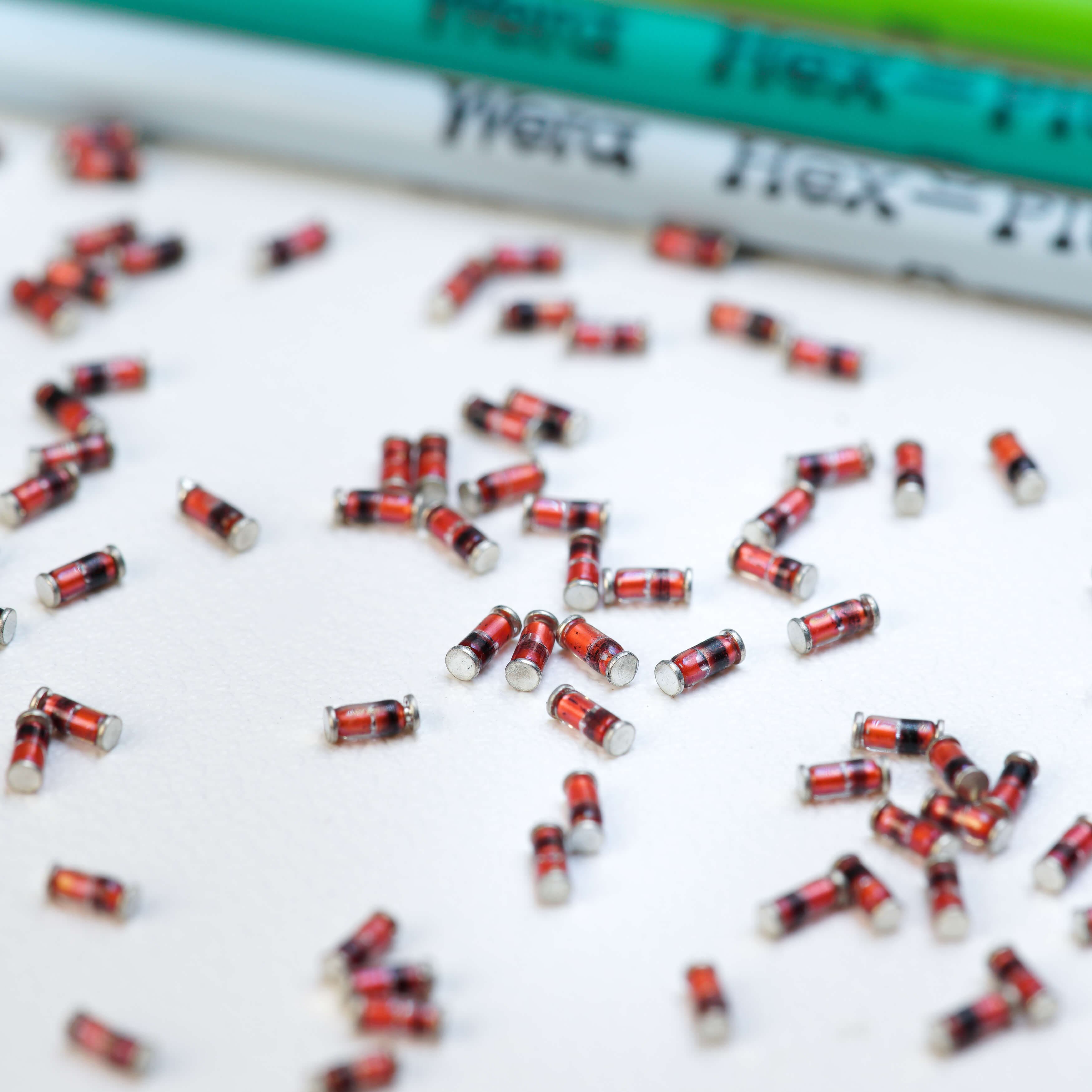

Diode SMD

SMD Diode

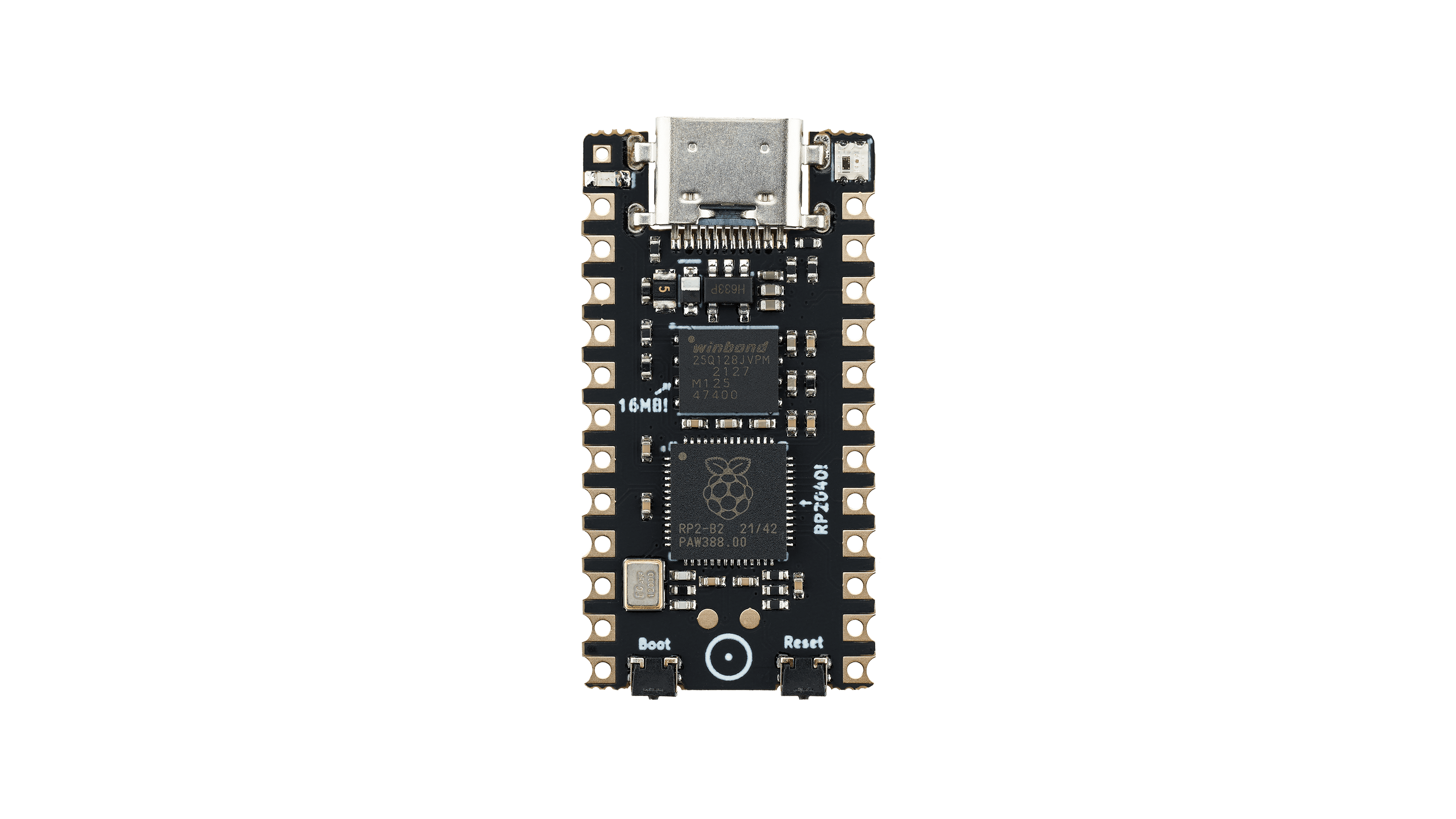

**Introducing the Blok by Boardsource, an RP2040 (ARM) based controller built for the keyboard community.**

Blok’s elevate any keyboard compatible with Pro Micro Footprints and grants them instant access to a modern and feature-rich ecosystem. Users who don’t want to touch a text editor or config file don’t have to, Blok’s work out of the box with Peg. Users can map keys, set LED colors,  configure rotary encoders, create OLED images, and much more all from within an easy to use visual program (GUI). Many of Peg’s features and configuration options are unavailable through any other flashing program built for yesterday’s ATmega32U4 processors. Now,  deep configuration and rich features custom keyboards offer can be configured easily instead of becoming another project. On the other hand, users who enjoy in-the-editor programming, product development,  design, or any other roll your solution will similarly love the Blok. Shipping with KMK and CircuitPython out of the box, Blok’s offer enthusiasts and creators a modern development environment limited only by your imagination instead of programming knowledge and hardware constraints. Create your entire keymap in Python within a single main.py file and test your changes instantly, no recompiling necessary.  Remember, if this isn’t your thing — Peg can handle it for you.

Built on top of a powerful RP2040 ARM microprocessor and designed with the future in mind, Blok’s handle whatever you throw at them.  Compared to older ATmega based controllers Blok’s have an incredible 100x the RAM, 8x the computing speed, 500x the ROM, are 32 bit instead of 8 bit, and are dual-core instead of single core. These are huge upgrades and allows for innovation and development within the custom keyboard space.  Blok’s offer additional features and functionality compared to other RP2040 based controllers as well,  such as OLED screen compatibility, innovative reset/boot switches accessible in any controller orientation, USB-C connectivity and a programmable RGB LED on-board.



## Blok Feature Comparison


| Features                        | Boardsource Blok | Other RP2040 Controllers | ATmega34U4 Controllers |
|---------------------------------|------------------|--------------------------|------------------------|
| CPU Cores                       | 2                | 2                        | 1                      |
| CPU Speed                       | 133MHz           | 133MHz                   | 16MHz                  |
| RAM                             | 264KB            | 264KB                    | 32kb                   |
| ROM                             | 16MB             | 8MB                      | 1KB                    |
| Thickness                       | 3.2mm            | 4.91mm                   | 3.2mm                  |
| Accessible Reset / Boot  | Yes              | No                       | No                     |
| LED                             | Purple and RGB   | No/Red/Blue              | Blue                   |
| Peg Support                     | Yes              | Yes                      | No                     |
| KMK Support                     | Yes              | Yes                      | No                     |
| QMK Support                     | Yes              | Yes                      | Yes                     |
| ZMK Support                     | Yes*            | Yes*                     | No                      |\

* ZMK support is only unibody (not split) keyboards


Viewing Products Tagged As

Featured Item In Category

Blok

An RP2040 Controller for the Keyboard Community

Other Items In

Category
